How Are Boolean Operators Represented In Rectangular Shape Sets, Including Distinctive Shapes, Binary Codes, And Color Contextual Symbols?
Boolean operators are fundamental to digital logic and computer science. They allow us to combine or modify conditions, creating complex decision-making processes within systems. These operators—AND, OR, NOT, XOR, NAND, NOR, and XNOR—are essential in everything from circuit design to software development. Representing these operators visually using rectangular shape sets provides a clear and intuitive way to understand their functions. This article delves into how different Boolean operators are represented using rectangular shapes, discussing the distinctive shapes, binary codes, color contexts, and contextual symbols that help illustrate their roles.

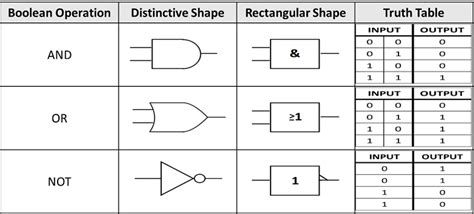

Distinctive Shapes for Boolean Operators
In the realm of digital logic and circuit design, visual representations of Boolean operators using distinctive shapes provide a crucial educational and practical tool. Each operator's unique shape aids engineers, students, and professionals in quickly identifying and understanding the logical function being performed. The distinctive shapes not only offer a visual cue but also simplify the process of designing and interpreting complex digital circuits. Standardized shapes ensure clarity and consistency, making it easier for individuals across different technical backgrounds to collaborate and comprehend circuit diagrams.
One of the most common methods to represent Boolean operators is using symbols based on IEC (International Electrotechnical Commission) standards and ANSI (American National Standards Institute) standards. For instance, the AND operator is often depicted as a shape resembling a 'D,' with two inputs and one output. This shape visually implies that both inputs must be true for the output to be true, mirroring the logical behavior of the AND function. In contrast, the OR operator is commonly represented by a shape that is curved on the input side and pointed on the output side, visually suggesting that if either input is true, the output will also be true. The NOT operator, which performs logical negation, is typically represented by a triangle pointing towards a small circle, indicating that the output is the inverse of the input.
The use of distinctive shapes extends to more complex operators such as XOR (Exclusive OR), NAND (NOT AND), NOR (NOT OR), and XNOR (Exclusive NOR). The XOR operator, which yields a true output only if the inputs differ, is often represented by an OR gate symbol with an additional curved line on the input side. This slight modification visually distinguishes XOR from OR, emphasizing its unique behavior. NAND and NOR gates, which are the negations of AND and OR respectively, are represented by their respective shapes (D for AND and curved shape for OR) with a small circle at the output, signifying negation. The XNOR gate, which outputs true only when both inputs are the same, can be seen as an XOR gate with an added inversion bubble, further illustrating its relationship to XOR.
The value of these distinctive shapes goes beyond mere aesthetics; they serve a practical purpose in circuit design and troubleshooting. When engineers design digital circuits, they use these shapes to create circuit diagrams. These diagrams are visual roadmaps that detail how different logic gates are interconnected to achieve a specific function. The clarity of these diagrams is paramount because they allow engineers to quickly identify potential issues, optimize circuit performance, and ensure that the circuit behaves as intended. For example, a quick glance at a circuit diagram can reveal whether an AND gate is correctly placed to ensure that a particular function is only activated when two conditions are met simultaneously.
Furthermore, the use of standardized shapes for Boolean operators facilitates educational efforts in digital logic and computer science. Students learning about digital circuits can more easily grasp the behavior of different gates when they have a clear visual representation to associate with each operator. The shapes provide a memorable and intuitive way to understand the truth tables and logical functions associated with each operator. This visual learning can be particularly beneficial for students who are new to the field, helping them build a solid foundation in digital logic concepts.
In addition to formal education, distinctive shapes play a critical role in technical documentation and communication. When engineers and technicians collaborate on a project, they rely on shared standards and conventions to communicate effectively. The use of standardized shapes for Boolean operators ensures that everyone on the team can understand the circuit diagrams and logical functions, regardless of their specific background or training. This consistency minimizes the risk of misinterpretation and errors, leading to more efficient and reliable circuit design and implementation.
The ongoing evolution of digital technology has also influenced the representation of Boolean operators. While the fundamental shapes have remained largely consistent, there have been efforts to refine and adapt these representations to new contexts and technologies. For instance, in modern electronic design automation (EDA) tools, which are used to design and simulate complex digital circuits, the shapes of Boolean operators may be rendered in different styles or with additional annotations to provide more information about their behavior. These enhancements build upon the established foundation of distinctive shapes, ensuring that the visual representations remain both informative and accessible.
Binary Codes for Boolean Operators
Binary codes are the backbone of digital systems, providing a way to represent and manipulate information using only two symbols: 0 and 1. Boolean operators, which perform logical operations on binary inputs, are critical components in this system. Representing Boolean operators using binary codes allows for precise computation and manipulation of logical functions within digital circuits and software. This section explores how each Boolean operator can be expressed using binary codes, focusing on truth tables and their corresponding binary representations.
The cornerstone of binary code representation for Boolean operators is the truth table. A truth table exhaustively lists all possible input combinations and their corresponding outputs for a given operator. For a binary operator, which takes two inputs, there are four possible input combinations: (0, 0), (0, 1), (1, 0), and (1, 1). The output for each of these combinations defines the behavior of the operator. For instance, the AND operator yields an output of 1 only when both inputs are 1; otherwise, it outputs 0. This behavior can be clearly represented in a truth table, which then translates directly into a binary code representation.
Consider the AND operator, whose truth table is as follows:
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
This truth table can be encoded into a binary code by concatenating the output column, reading from top to bottom. Thus, the binary code representation for the AND operator is 0001. This four-digit binary code succinctly encapsulates the AND operator's logical behavior. Similarly, each Boolean operator has a unique binary code representation derived from its truth table.
The OR operator, which outputs 1 if at least one of the inputs is 1, has the following truth table:
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 1 |
The binary code representation for the OR operator is 0111. This code indicates that the output is 0 only when both inputs are 0, and 1 in all other cases. The NOT operator, which is a unary operator (taking only one input), inverts the input. Its truth table and binary code are simpler:
| Input | Output |
|---|---|
| 0 | 1 |
| 1 | 0 |
The binary code representation for the NOT operator is 10. The XOR (Exclusive OR) operator outputs 1 if the inputs are different and 0 if they are the same. Its truth table is:
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
The binary code representation for the XOR operator is 0110. This code clearly shows that the output is 1 only when the inputs are distinct. The NAND (NOT AND) operator is the negation of the AND operator. Its truth table and binary code are the inverse of AND:
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
The binary code representation for the NAND operator is 1110. The NOR (NOT OR) operator is the negation of the OR operator, with the following truth table:
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 0 |
The binary code representation for the NOR operator is 1000. Lastly, the XNOR (Exclusive NOR) operator is the negation of the XOR operator, outputting 1 when the inputs are the same and 0 when they are different. Its truth table is:
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
The binary code representation for the XNOR operator is 1001. These binary code representations are fundamental in digital logic design and computer architecture. They allow digital circuits to perform logical operations by manipulating binary data. For instance, microprocessors use combinations of logic gates, each represented by its binary code, to execute instructions and perform computations. The binary codes also facilitate the simplification and optimization of logical expressions using techniques such as Karnaugh maps and Boolean algebra.
Moreover, binary codes are essential in the design of memory systems and data storage. When information is stored in digital memory, it is encoded in binary format. Boolean operators, represented by their binary codes, are used to perform read and write operations, ensuring that data is correctly accessed and manipulated. The efficient representation of Boolean operators in binary form is crucial for the performance and reliability of digital systems. In software development, binary codes are indirectly used through high-level programming languages. Compilers translate logical expressions in code into binary instructions that the computer's processor can understand and execute. This translation relies on the binary representations of Boolean operators to ensure that the logical operations in the code are correctly implemented at the hardware level.
The use of binary codes for Boolean operators also extends to the field of cryptography. Cryptographic algorithms often use complex combinations of logical operations to encrypt and decrypt data. The binary representations of these operations are critical for the security and efficiency of cryptographic systems. For example, bitwise operations, which directly manipulate binary data, are commonly used in encryption algorithms to transform plaintext into ciphertext and vice versa.
Color Contextual Symbols for Boolean Operators
Color and contextual symbols provide an intuitive and accessible way to represent Boolean operators, enhancing understanding and usability in various applications. While shapes and binary codes offer precise representations, color and contextual symbols add an extra layer of meaning, making it easier for individuals, particularly those new to the field, to grasp the functions of these operators. This section explores how color coding and contextual symbols can effectively represent Boolean operators, enhancing clarity and comprehension.
Color coding is a powerful tool for visually distinguishing between different elements or functions. In the context of Boolean operators, different colors can be assigned to each operator to help users quickly identify and differentiate them. For example, the AND operator might be represented in blue, the OR operator in green, and the NOT operator in red. This color-coding scheme can be consistently applied across circuit diagrams, educational materials, and software interfaces, providing a visual shorthand for understanding the logic being implemented.
The use of color can also extend to representing the state of inputs and outputs. For instance, a high (1) input or output might be represented in a bright color, such as bright green, while a low (0) input or output could be represented in a muted color, such as gray. This color-coding can be particularly useful in dynamic simulations of digital circuits, where the changing states of inputs and outputs can be visualized in real-time. Seeing the colors change as the circuit operates can provide a more intuitive understanding of the circuit's behavior than simply observing binary values.
Contextual symbols add another dimension to the representation of Boolean operators. These symbols use real-world analogies or metaphors to convey the meaning of the operators. For instance, the AND operator, which requires both inputs to be true for the output to be true, might be represented by a symbol of a series circuit. In a series circuit, both switches must be closed for the current to flow, mirroring the behavior of the AND operator. Similarly, the OR operator, which outputs true if at least one input is true, might be represented by a parallel circuit, where closing either switch will allow current to flow.
The NOT operator, which inverts the input, can be represented by a symbol of an inverter, such as a light switch in the opposite position. If the switch is on (1), the light is off (0), and vice versa. This analogy helps to convey the concept of logical negation in a way that is easy to understand. For more complex operators, contextual symbols can be combined or adapted to represent their unique behaviors. The XOR operator, which outputs true only if the inputs are different, might be represented by a symbol of a toggle switch that changes state each time it is activated.
In educational settings, the use of color and contextual symbols can significantly enhance the learning experience. For students who are new to digital logic, these visual aids can make abstract concepts more concrete and accessible. Interactive simulations that use color-coded logic gates and contextual symbols can provide a hands-on way to explore the behavior of Boolean operators. Students can experiment with different input combinations and observe the resulting outputs, building a deeper understanding of the underlying logic.
Color and contextual symbols are also valuable in software design and user interface development. When designing software applications that involve logical operations, using visual cues can make the application more user-friendly. For example, in a graphical programming environment, Boolean operators might be represented by color-coded blocks with contextual symbols. This visual representation can help programmers to quickly understand the logic of their code and reduce the risk of errors. In user interfaces, color-coding and contextual symbols can be used to represent the status of different conditions or settings. A green light might indicate that a condition is true, while a red light indicates that it is false. Contextual symbols, such as checkmarks or crosses, can provide additional visual cues to help users understand the state of the system.
Furthermore, color and contextual symbols play a crucial role in documentation and communication. When creating technical documentation, using consistent color-coding and symbols can make the material easier to read and understand. Circuit diagrams that use color-coded logic gates can be quickly interpreted by engineers and technicians, even if they are not intimately familiar with the specific design. Similarly, flowcharts that use contextual symbols to represent logical operations can help to communicate the logic of a program or system in a clear and concise manner.
The accessibility benefits of color and contextual symbols are particularly important. For individuals with visual impairments or learning disabilities, these visual aids can make digital logic concepts more accessible. Color-blindness, for example, can be mitigated by using color combinations that are easily distinguishable, such as blue and yellow. Contextual symbols provide an alternative way to understand the logic, reducing reliance on abstract symbols or binary codes. In inclusive educational settings, these visual aids can help to ensure that all students have the opportunity to learn and understand digital logic concepts.
Conclusion
In conclusion, representing Boolean operators through distinctive shapes, binary codes, and color contextual symbols is essential for clarity and understanding in digital logic and computer science. Distinctive shapes provide a visual shorthand for identifying operators in circuit diagrams, while binary codes offer a precise means of manipulating logical functions within digital systems. Color contextual symbols, meanwhile, enhance comprehension by adding intuitive visual cues and real-world analogies. By leveraging these diverse representations, professionals, students, and enthusiasts can effectively design, analyze, and learn about digital circuits and systems, fostering innovation and progress in the field of technology.
