Match These Analog-to-digital Conversion Processes With Their Descriptions: Defining The Number Of Possible Signal Amplitude Levels, Converting A Single Signal Into Binary Code, Selecting The Duration Of The Step (time Interval) With Which The Discussion Will Take Place.

by ADMIN 272 views

The world around us is analog in nature. This means that the signals we encounter in our daily lives, such as sound waves, light waves, and temperature variations, are continuous and can take on an infinite number of values within a given range. However, computers and other digital devices operate on digital signals, which are discrete and can only take on a finite number of values. To bridge this gap between the analog and digital worlds, we use a process called analog-to-digital conversion (ADC). This process converts continuous analog signals into discrete digital signals that can be processed by digital systems.

Analog-to-digital conversion is a fundamental process in modern technology, enabling us to interact with the real world using digital devices. From recording music to capturing images and controlling industrial processes, ADCs play a crucial role in a wide range of applications. At its core, ADC involves transforming a continuous analog signal into a discrete digital representation. This transformation is essential because computers and other digital systems operate on binary data, which consists of 0s and 1s. Analog signals, on the other hand, are continuous and can take on an infinite number of values within a given range. The process of ADC involves several key steps, each contributing to the accurate and efficient conversion of analog signals into digital data. These steps include sampling, quantization, and encoding. Sampling involves taking discrete measurements of the analog signal at regular intervals. The sampling rate, which is the number of samples taken per second, determines how accurately the digital signal represents the original analog signal. A higher sampling rate captures more information, resulting in a more accurate digital representation. Quantization is the process of assigning a discrete value to each sample. Since digital systems can only represent a finite number of values, the continuous range of analog signal values must be divided into a set of discrete levels. The number of quantization levels determines the resolution of the digital signal, with more levels providing a finer granularity and a more accurate representation of the original analog signal. Encoding is the final step in the ADC process, where each quantized value is converted into a binary code. This binary code can then be processed and stored by digital systems. The choice of encoding scheme depends on the specific application and the desired characteristics of the digital signal. Understanding these fundamental steps is crucial for comprehending the intricacies of analog-to-digital conversion and its wide-ranging applications.

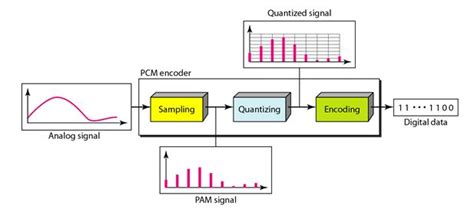

Three fundamental processes are involved in analog-to-digital conversion quantization, encoding, and sampling. Each of these processes plays a vital role in accurately converting an analog signal into a digital representation. Let's delve into each of these processes in detail:

1. Quantization: Defining the Amplitude Levels

Quantization is a critical step in the ADC process, as it determines the number of discrete amplitude levels that will be used to represent the analog signal. In essence, quantization involves dividing the continuous range of analog signal values into a finite set of discrete levels. Each sample of the analog signal is then assigned to the closest quantization level. The number of quantization levels directly impacts the resolution of the digital signal. A higher number of levels provides a finer granularity, allowing for a more accurate representation of the original analog signal. However, increasing the number of quantization levels also increases the amount of data required to represent the digital signal. The choice of the number of quantization levels is a trade-off between accuracy and data size. In practical applications, the number of quantization levels is typically chosen based on the desired signal-to-noise ratio and the available bandwidth. For example, audio signals often require a higher number of quantization levels to capture the nuances of sound, while simpler signals may be adequately represented with fewer levels. The process of quantization inevitably introduces some level of error, known as quantization error. This error arises because the analog signal value is not exactly matched by any of the discrete quantization levels. The magnitude of the quantization error is inversely proportional to the number of quantization levels. Therefore, increasing the number of levels reduces the quantization error and improves the accuracy of the digital representation. Various techniques are employed to minimize quantization error, such as using non-uniform quantization levels or adding dither noise to the analog signal before quantization. These techniques aim to distribute the quantization error more evenly across the signal, reducing its impact on the overall signal quality. Understanding the principles of quantization is essential for designing and implementing effective ADC systems that accurately capture and represent analog signals in the digital domain.

2. Encoding: Converting to Binary Code

Encoding is the process of converting the quantized amplitude levels into a digital code, typically a binary code. This binary code represents the discrete amplitude value of the analog signal at a specific point in time. The encoding process is essential for representing the analog signal in a format that can be processed and stored by digital systems. Different encoding schemes can be used, each with its own advantages and disadvantages. The most common encoding scheme is binary encoding, where each quantized level is represented by a unique binary code. The number of bits used in the binary code determines the number of quantization levels that can be represented. For example, an 8-bit code can represent 256 quantization levels (2^8), while a 10-bit code can represent 1024 levels (2^10). The choice of the number of bits depends on the desired resolution of the digital signal. Other encoding schemes, such as Gray code, are used in specific applications where it is important to minimize the impact of errors during the conversion process. Gray code is a binary code in which successive values differ by only one bit, reducing the likelihood of large errors when transitioning between adjacent levels. The encoding process typically involves assigning a unique binary code to each quantization level. This assignment can be done in a variety of ways, depending on the specific encoding scheme used. For example, in binary encoding, the quantization levels are typically assigned consecutive binary codes, starting from 0. Once the quantized amplitude levels have been encoded into binary code, the digital signal can be processed and stored by digital systems. The binary code represents the discrete amplitude values of the analog signal, allowing for accurate and efficient representation in the digital domain. Understanding the encoding process is crucial for comprehending how analog signals are converted into digital data that can be used in a wide range of applications.

3. Sampling: Selecting the Time Intervals

Sampling is the process of taking discrete measurements of the analog signal at regular intervals. This process is crucial because it captures the signal's amplitude at specific points in time, transforming the continuous analog signal into a series of discrete samples. The frequency at which these samples are taken is known as the sampling rate, and it is a critical parameter that determines how accurately the digital signal represents the original analog signal. The Nyquist-Shannon sampling theorem is a fundamental principle that governs the relationship between the sampling rate and the maximum frequency component in the analog signal. This theorem states that the sampling rate must be at least twice the highest frequency component in the analog signal to avoid a phenomenon called aliasing. Aliasing occurs when the sampling rate is too low, causing high-frequency components in the analog signal to be misrepresented as lower-frequency components in the digital signal. This can lead to distortion and loss of information in the reconstructed signal. To prevent aliasing, it is common practice to use an anti-aliasing filter before sampling. This filter attenuates high-frequency components in the analog signal that are above the Nyquist frequency, which is half the sampling rate. The sampling rate chosen for a particular application depends on the characteristics of the analog signal and the desired accuracy of the digital representation. For example, audio signals typically require a higher sampling rate than slowly varying signals such as temperature readings. Common sampling rates for audio signals include 44.1 kHz (CD quality) and 48 kHz (professional audio). The sampling process involves several steps, including holding the analog signal value constant during the sampling interval. This is typically achieved using a sample-and-hold circuit, which captures the analog signal value and holds it constant while the ADC performs the conversion. The duration of the sampling interval is also a critical parameter, as it affects the accuracy of the digital representation. Shorter sampling intervals capture more information about the analog signal, but they also require faster and more expensive ADC components. Understanding the principles of sampling is essential for designing ADC systems that accurately capture and represent analog signals in the digital domain. By choosing an appropriate sampling rate and using anti-aliasing filters, it is possible to minimize aliasing and ensure that the digital signal faithfully represents the original analog signal.

Now, let's match the processes we've discussed with their corresponding descriptions:

  • Quantization: This process is about defining the number of possible amplitude levels for the signal. It determines the resolution of the digital representation.
  • Encoding: This involves converting the quantized signal into a binary code, which is the language of digital systems.
  • Sampling: This process is about selecting the time intervals at which the analog signal's amplitude will be measured. The sampling rate determines how often these measurements are taken.

Analog-to-digital conversion is essential for various applications across many industries and fields. Here are some notable examples:

  • Audio Recording: ADCs are fundamental in recording music and other audio signals. They convert the continuous sound waves into digital data that can be stored, edited, and played back on computers and other devices. The quality of the ADC directly impacts the fidelity of the recorded audio.
  • Image and Video Capture: Digital cameras and video recorders use ADCs to convert the analog signals from image sensors into digital images and videos. The resolution and dynamic range of the ADC are crucial for capturing high-quality visuals.
  • Sensor Interfacing: Many sensors, such as temperature sensors, pressure sensors, and light sensors, produce analog signals. ADCs are used to convert these signals into digital data that can be processed by microcontrollers and other digital systems.
  • Industrial Control Systems: In industrial automation, ADCs are used to monitor and control various processes. For example, they can be used to measure the temperature, pressure, and flow rate of liquids and gases, enabling precise control of industrial equipment.
  • Medical Instrumentation: ADCs are vital in medical devices such as electrocardiograms (ECGs) and electroencephalograms (EEGs). These devices use ADCs to convert the analog signals from the body into digital data that can be analyzed by healthcare professionals.
  • Telecommunications: ADCs are used in communication systems to convert analog voice and data signals into digital signals for transmission over digital networks. This allows for efficient and reliable communication over long distances.

Analog-to-digital conversion is a critical process that bridges the gap between the analog and digital worlds. By understanding the fundamental processes of sampling, quantization, and encoding, we can appreciate the intricacies of how analog signals are transformed into digital data. This conversion is vital for various applications, impacting how we interact with technology and the world around us. From recording music to capturing images and controlling industrial processes, ADCs play a crucial role in modern technology. The choice of ADC parameters, such as sampling rate and resolution, depends on the specific application and the desired performance characteristics. As technology continues to advance, ADCs will remain essential components in countless systems, enabling us to harness the power of digital processing for analog signals. Understanding the principles of ADC is therefore essential for anyone working with digital systems and their interactions with the physical world.
