Principal Stress Analysis in a Plane Stress System Using Mohr's Circle

In the realm of mechanical engineering and material science, understanding stress distribution within a material is crucial for ensuring structural integrity and preventing failures. Principal stresses represent the maximum and minimum normal stresses at a point, and they act on planes where the shear stress is zero. When dealing with a plane stress system, we consider stresses acting in two dimensions, which simplifies the analysis while still providing valuable insights. This article delves into the determination of stress components on inclined planes and the minimum shear stress value in a plane stress system using Mohr's Circle, a graphical tool widely used in stress analysis.

Introduction to Principal Stresses and Plane Stress Systems

In the study of solid mechanics, stress is a measure of the internal forces acting within a deformable body. When an object is subjected to external loads, internal stresses develop as a reaction to these loads. These stresses can be normal stresses, which act perpendicular to a surface, or shear stresses, which act parallel to a surface. At any point within a material, there exists a set of orthogonal planes on which the normal stresses are maximum and minimum. These normal stresses are called the principal stresses, and the planes on which they act are called the principal planes. The maximum principal stress is denoted as σ₁, and the minimum principal stress is denoted as σ₂. On the principal planes, the shear stress is always zero.

A plane stress system is a simplified stress state where the stress components in one direction are assumed to be zero. This condition is often encountered in thin plates subjected to in-plane loading. In a plane stress system, we only consider the stresses acting in two dimensions, typically denoted as σₓ, σᵧ, and τₓᵧ, where σₓ and σᵧ are the normal stresses in the x and y directions, respectively, and τₓᵧ is the shear stress. The principal stresses in a plane stress system can be calculated using the following equations:

σ₁,₂ = (σₓ + σᵧ)/2 ± √[((σₓ - σᵧ)/2)² + τₓᵧ²]

The angle of the principal planes, θₚ, can be determined using the equation:

tan(2θₚ) = 2τₓᵧ / (σₓ - σᵧ)

Understanding principal stresses is crucial for several reasons. First, the maximum principal stress represents the highest tensile stress in the material, which is a critical factor in determining the material's resistance to fracture. Second, the minimum principal stress represents the highest compressive stress, which is important for assessing the material's susceptibility to buckling. Third, the orientation of the principal planes is essential for understanding the direction in which the material is most likely to fail. In practical engineering applications, engineers use the concept of principal stresses to design structures that can withstand applied loads without failure.

Mohr's Circle: A Graphical Tool for Stress Analysis

Mohr's Circle is a graphical representation of the state of stress at a point. It provides a visual tool for understanding the transformation of stresses as the coordinate system is rotated. This method, developed by German civil engineer Christian Otto Mohr in 1882, allows engineers to determine the stresses on any plane passing through a point in a stressed material. Mohr's Circle is particularly useful for plane stress problems, where the stress components in one direction are negligible.

The construction of Mohr's Circle involves plotting the normal stress (σ) on the horizontal axis and the shear stress (τ) on the vertical axis. Each point on the circle represents the stress state on a specific plane. The center of the circle corresponds to the average normal stress, and the radius of the circle represents the maximum shear stress. The principal stresses are located at the points where the circle intersects the horizontal axis.

To construct Mohr's Circle, we first plot the stress components on two orthogonal planes. Let's consider a plane stress system with normal stresses σₓ and σᵧ and shear stress τₓᵧ. We plot two points on the σ-τ plane: (σₓ, τₓᵧ) and (σᵧ, -τₓᵧ). The center of the circle is located at the midpoint of the line connecting these two points, which is given by:

Center = ((σₓ + σᵧ)/2, 0)

The radius of the circle is the distance from the center to either of the plotted points, which can be calculated as:

Radius = √[((σₓ - σᵧ)/2)² + τₓᵧ²]

Once the circle is constructed, we can determine the stresses on any plane inclined at an angle θ to the original coordinate system. To do this, we rotate a radius line from the horizontal axis by an angle of 2θ in the same direction as the inclination of the plane. The coordinates of the point where the rotated radius intersects the circle represent the normal and shear stresses on the inclined plane.

Mohr's Circle provides a clear visualization of how stresses transform with changes in orientation. It allows for the easy determination of principal stresses, maximum shear stress, and stresses on inclined planes. This graphical tool is invaluable for engineers in analyzing stress states and designing structures that can safely withstand applied loads. The use of Mohr's Circle simplifies complex stress calculations and provides a visual understanding of stress transformations, making it an indispensable tool in stress analysis.

Benefits of Using Mohr's Circle

Visualization of Stress States: Mohr's Circle offers a clear visual representation of the stress state at a point, making it easier to understand the relationships between normal and shear stresses.
Determination of Principal Stresses: The principal stresses can be directly read off the circle as the points where it intersects the horizontal axis.
Calculation of Maximum Shear Stress: The maximum shear stress is equal to the radius of the circle.
Stress Transformation: Mohr's Circle allows for the determination of stresses on any plane passing through the point by simply rotating a radius line.
Simplified Calculations: The graphical method simplifies complex stress calculations, reducing the likelihood of errors.

Problem Statement: Principal Stresses and Stress Components

Consider a plane stress system where the principal stresses are given as σ₁ = 100 N/mm² and σ₂ = 30 N/mm². Our objective is to utilize Mohr's Circle to determine:

A. The stress components on planes inclined at 60° and 105° to the plane of maximum principal stress.

B. The minimum value of shear stress in the system.

This problem exemplifies a typical stress analysis scenario where we need to find the stress components on specific planes given the principal stresses. By using Mohr's Circle, we can graphically represent the stress state and easily determine the required stress components and the minimum shear stress.

Setting up Mohr's Circle for the Given Problem

To begin, we need to set up Mohr's Circle based on the given principal stresses. The principal stresses are the maximum and minimum normal stresses, which act on planes with zero shear stress. In this case, σ₁ = 100 N/mm² and σ₂ = 30 N/mm². These values will define the points where the circle intersects the horizontal axis. The center of the circle lies on the horizontal axis at the average normal stress, which is calculated as:

σ_avg = (σ₁ + σ₂) / 2 = (100 + 30) / 2 = 65 N/mm²

The center of Mohr's Circle is therefore at (65, 0) on the σ-τ plane. The radius of the circle is the difference between the maximum principal stress and the average normal stress, or half the difference between the two principal stresses:

R = (σ₁ - σ₂) / 2 = (100 - 30) / 2 = 35 N/mm²

With the center and radius determined, we can now construct Mohr's Circle. The circle is centered at (65, 0) with a radius of 35 N/mm². The points where the circle intersects the horizontal axis are (100, 0) and (30, 0), corresponding to the principal stresses σ₁ and σ₂, respectively. This setup provides the foundation for graphically determining the stress components on inclined planes and the minimum shear stress.

A. Stress Components on Inclined Planes

To determine the stress components on planes inclined at 60° and 105° to the plane of maximum principal stress, we use Mohr's Circle to graphically represent the stress transformation. The key principle here is that a rotation of θ in the physical plane corresponds to a rotation of 2θ on Mohr's Circle.

1. Plane Inclined at 60° to the Plane of Maximum Principal Stress

For a plane inclined at 60° to the plane of maximum principal stress, we rotate a radius line from the horizontal axis by an angle of 2 * 60° = 120° in the same direction. Starting from the point representing the maximum principal stress (100, 0) on Mohr's Circle, we rotate counterclockwise by 120°. The point where this rotated radius intersects the circle represents the normal and shear stresses on the 60° inclined plane.

To find the coordinates of this point, we can use trigonometry. The coordinates (σ_60, τ_60) can be expressed as:

σ_60 = σ_avg + R * cos(120°)

τ_60 = R * sin(120°)

Substituting the values σ_avg = 65 N/mm² and R = 35 N/mm²:

σ_60 = 65 + 35 * cos(120°) = 65 + 35 * (-0.5) = 65 - 17.5 = 47.5 N/mm²

τ_60 = 35 * sin(120°) = 35 * (√3 / 2) ≈ 35 * 0.866 ≈ 30.31 N/mm²

Therefore, on the plane inclined at 60°, the normal stress σ_60 is approximately 47.5 N/mm², and the shear stress τ_60 is approximately 30.31 N/mm².

2. Plane Inclined at 105° to the Plane of Maximum Principal Stress

Similarly, for a plane inclined at 105° to the plane of maximum principal stress, we rotate a radius line from the horizontal axis by an angle of 2 * 105° = 210° in the same direction. Starting from the point representing the maximum principal stress (100, 0) on Mohr's Circle, we rotate counterclockwise by 210°. The point where this rotated radius intersects the circle represents the normal and shear stresses on the 105° inclined plane.

The coordinates (σ_105, τ_105) can be expressed as:

σ_105 = σ_avg + R * cos(210°)

τ_105 = R * sin(210°)

Substituting the values σ_avg = 65 N/mm² and R = 35 N/mm²:

σ_105 = 65 + 35 * cos(210°) = 65 + 35 * (-√3 / 2) ≈ 65 + 35 * (-0.866) ≈ 65 - 30.31 = 34.69 N/mm²

τ_105 = 35 * sin(210°) = 35 * (-0.5) = -17.5 N/mm²

Therefore, on the plane inclined at 105°, the normal stress σ_105 is approximately 34.69 N/mm², and the shear stress τ_105 is -17.5 N/mm². The negative sign indicates that the shear stress acts in the opposite direction compared to the 60° inclined plane.

B. Minimum Value of Shear Stress

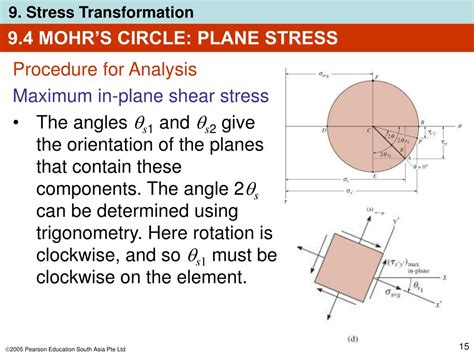

To determine the minimum value of shear stress in the system, we refer to Mohr's Circle. The shear stress is represented on the vertical axis of the circle. The maximum shear stress is equal to the radius of the circle, which is R = 35 N/mm². The minimum shear stress is the negative of the maximum shear stress, which occurs at the bottom of the circle.

Therefore, the minimum value of shear stress is -35 N/mm². This value represents the shear stress acting on a plane that is 90° away from the planes of maximum shear stress. The planes of maximum shear stress are oriented at 45° to the principal planes.

Conclusion

In conclusion, by utilizing Mohr's Circle, we have successfully determined the stress components on planes inclined at 60° and 105° to the plane of maximum principal stress, as well as the minimum value of shear stress in the given plane stress system. The stress components on the 60° inclined plane are approximately σ_60 = 47.5 N/mm² and τ_60 = 30.31 N/mm², while on the 105° inclined plane, they are approximately σ_105 = 34.69 N/mm² and τ_105 = -17.5 N/mm². The minimum shear stress in the system is -35 N/mm².

Mohr's Circle provides a powerful graphical tool for analyzing stress states in materials. It allows engineers to visualize stress transformations, determine principal stresses and maximum shear stresses, and find stress components on inclined planes. This method is crucial for ensuring the structural integrity of components and preventing failures in engineering applications. The ability to quickly and accurately assess stress distributions is vital in the design and analysis of various structures and mechanical systems. Understanding and applying concepts like principal stress and Mohr's Circle enhances the capability to create safer and more efficient engineering designs.

This analysis underscores the importance of understanding stress distributions in engineering design. By accurately determining stress components on various planes, engineers can ensure that structures are designed to withstand applied loads without failure. The use of Mohr's Circle as a graphical tool simplifies these calculations and provides a clear visual representation of stress transformations, making it an indispensable part of any structural analysis.

In summary, the principal stress analysis using Mohr's Circle is a critical skill for engineers and material scientists. It enables a comprehensive understanding of stress states, ensuring the safe and effective design of engineering components and structures. The graphical method provides an intuitive approach to stress transformation, simplifying complex calculations and offering valuable insights into material behavior under stress.

Key Takeaways

Principal stresses are the maximum and minimum normal stresses at a point.
A plane stress system simplifies stress analysis by considering stresses in two dimensions.
Mohr's Circle is a graphical tool for visualizing stress transformations.
The center of Mohr's Circle represents the average normal stress.
The radius of Mohr's Circle represents the maximum shear stress.
Stress components on inclined planes can be determined by rotating a radius line on Mohr's Circle.
The minimum shear stress is the negative of the maximum shear stress.

By mastering these concepts, engineers and designers can confidently analyze stress states and create robust, reliable structures and mechanical systems. The principles of stress analysis, particularly the application of Mohr's Circle, are fundamental to ensuring the safety and efficiency of engineered solutions. This knowledge is not only essential for preventing structural failures but also for optimizing designs to minimize material usage and maximize performance.
